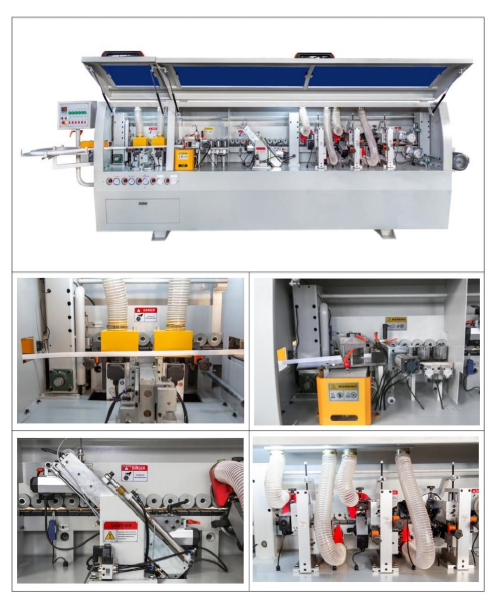

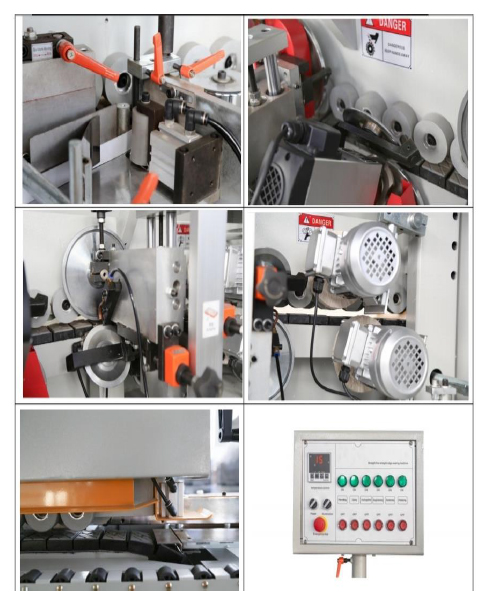

R7A wood edge banding machine

Technical Parameter

Type R7A
Nanding tape thickness 0.4 - 3mm
Banding tape width 10 - 60mm
Work peice thickness 10 - 60mm
Work peice length >=100mm
Work peice width >=50mm
Heating power 1.5 kw
Feeding motor power 2.2 kw
Glue spreading power 0.37kw
Rough trimming power 0.75kw * 2
End trimming power 0.55kw * 2
Fine trimming power 0.75kw * 2
Polishing motor power 0.18kw * 2
Feeding speed 13 m/min
Air pressure 0.7 Mpa
Total Power 10.63kw
Overall dimention 7940*900*1500mm
Packing size 5000*1000*1600mm
N.W. 1600 kgs
G.W. 1870 kgs
